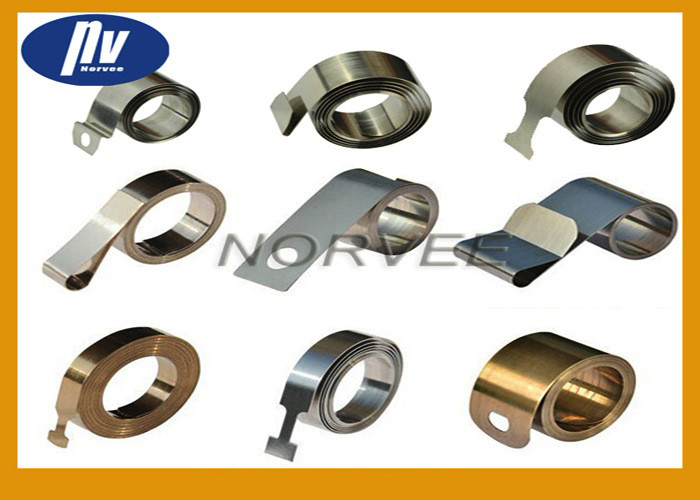

Custom Made Spiral Coil Spring With Carbon Steel / Stainless Steel Material
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Stainless Steel 301 | Name | Custom Made Springs |
---|---|---|---|
Tolerance | 0.01mm | Thickness | 0.08-1.8mm |
Length | 100mm To 800mm | Force | 2N To 15N |
High Light | tape measure spring,stainless steel coil springs,stainless steel 301 spiral coil spring |
customized made carbon steel stainless steel spiral coil springs
Specifications
Power springs are identified by the many coils of strip material stored in a case, barrel, or band, and connected to a central arbor or shaft. When this shaft is rotated, the material starts to wind flat against it. This action creates an increasing torque for as many turns as it can be wound until there is no material left.
Pre-pressed or conventional power springs
Our capabilities of power springs range from 0.002 inch to 0.125 inch material thickness and from 0.030 inch to 3 inch material widths. Power springs can be made using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed power springs are spooled to a special free diameter and back wound into a housing or keeper, while conventional wound springs are manufactured and wound in the flat state. The advantages of pre-stressed springs are that it allows maximized torque from a specific material. Conventional wound power springs, however, offer increased cycle life.
Material | Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5 |
Load type | Constant and variable force |
Thickness of material | 0.08mm~ 1.8mm |
Wire diameter | 0.01mm~ 10mm |
Width | 1mm~ 250mm |
Inside diameter | As your request |
Outside diameter | 1 mm and above. |
Length | Free length as you need |
Finish | Zinc plated, nickel plated, black coating,also can be done as customers request |
Application | Furniture,industrial equipment,electronic devices,etc |
Equipments | Advanced CNC computer spring machines with high precision and efficiency |
Technology | Experienced engineers ,technicians and Skilled Workers |
Certification | ISO9001:2008 |
Advantage | High quality, competitive prices,automatic production equipment, , safe package and fast delivery |

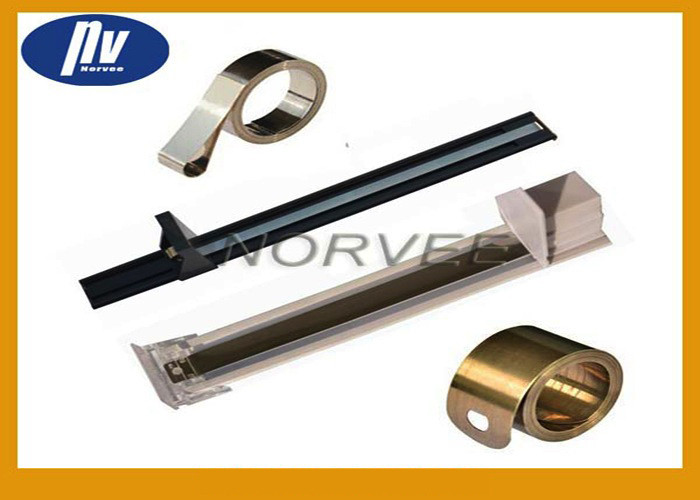

Applications for power springs
· Tobacco shelf pusher
· seatbelt retractors
· tape measures
· retractable dog leads
· electrical cord retractors
· hose reels
· wind-up toys
· pull start on small gas-powered engines
· tool balancers
· valves
· computer monitor
Motor spring
Motor spring for circular motion in max 10 and 20 coils, except pre-tension as specified below. The spring is usually positioned in a housing with the outer hook located around a pin or in a slot on the housing with the smallest internal diameter as specified below. It can also be placed in a larger housing, but with an associated decrease in force.
Clock spring
The clock spring (also referred to as a flat torsion spring) is designed to produce a torsional force (circular movement). In contrast to the tightly coiled motor spring on the previous page, the clock spring has open coils that, when mounted correctly, reduces fricton to zero. However, torque capacity is reduced as a result. The standard range is made from rounded edge stainless steel, which affords a better fatigue life.
Constant force spring
The constant force spring consists of strip material, which has been shaped and pre-tensioned into a tightly wound roll. The spring is used in a linear movement and produces almost constant force throughout its deflection. Constant force springs can be fitted in a number of ways and extended partly or completely. There is practically no limit on extension speed and acceleration.
