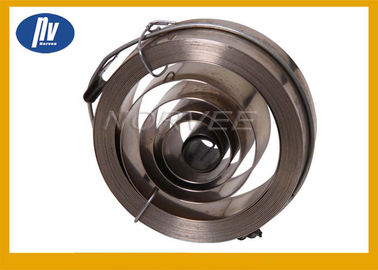

Constant / Variable Force Spiral Coil Spring For Retractor ISO 9001 Approved

Place of Origin CHINA
Brand Name NV
Certification ISO9001
Model Number NV-0041
Minimum Order Quantity 100PCS
Price negotiation
Packaging Details carton packing
Delivery Time 10 to 14 work days
Payment Terms L/C, , T/T, Western Union
Supply Ability 2 000 000PCS/month
Product Details
Material Stainless Steel 301 Name Heavy Duty Extension Springs
Tolerance 0.01mm Thickness 0.08-1.8mm
Force 2N To 30N Length 100mm To 1200mm
High Light

tape measure spring

,

stainless steel coil springs

,

Spiral Coil Spring ISO 9001 Approved

Leave a Message
Product Description

customized carbon steel spiral coil springs for retractor with ISO9001



Specifications





Material Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5
Load type Constant and variable force
Thickness of material 0.08mm~ 1.8mm
Wire diameter 0.01mm~ 10mm
Width 1mm~ 250mm
Inside diameter As your request
Outside diameter 1 mm and above.
Length Free length as you need
Finish Zinc plated, nickel plated, black coating,also can be done as customers request
Application Furniture,industrial equipment,electronic devices,etc
Equipments Advanced CNC computer spring machines with high precision and efficiency
Technology Experienced engineers ,technicians and Skilled Workers
Certification ISO9001:2008
Advantage High quality, competitive prices,automatic production equipment, , safe package and fast delivery





Applications for power springs



· Tobacco shelf pusher

· seatbelt retractors

· tape measures

· retractable dog leads

· electrical cord retractors

· hose reels

· wind-up toys

· pull start on small gas-powered engines

· tool balancers

· valves



Constant / Variable Force Spiral Coil Spring For Retractor ISO 9001 Approved 0



Constant / Variable Force Spiral Coil Spring For Retractor ISO 9001 Approved 1





Motor spring



Motor spring for circular motion in max 10 and 20 coils, except pre-tension as specified below. The spring is usually positioned in a housing with the outer hook located around a pin or in a slot on the housing with the smallest internal diameter as specified below. It can also be placed in a larger housing, but with an associated decrease in force.



Clock spring



The clock spring (also referred to as a flat torsion spring) is designed to produce a torsional force (circular movement). In contrast to the tightly coiled motor spring on the previous page, the clock spring has open coils that, when mounted correctly, reduces fricton to zero. However, torque capacity is reduced as a result. The standard range is made from rounded edge stainless steel, which affords a better fatigue life.



Constant force spring



The constant force spring consists of strip material, which has been shaped and pre-tensioned into a tightly wound roll. The spring is used in a linear movement and produces almost constant force throughout its deflection. Constant force springs can be fitted in a number of ways and extended partly or completely. There is practically no limit on extension speed and acceleration.

Pre-pressed or conventional power springs



Our capabilities of power springs range from 0.002 inch to 0.125 inch material thickness and from 0.030 inch to 3 inch material widths. Power springs can be made using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed power springs are spooled to a special free diameter and back wound into a housing or keeper, while conventional wound springs are manufactured and wound in the flat state. The advantages of pre-stressed springs are that it allows maximized torque from a specific material. Conventional wound power springs, however, offer increased cycle life.
