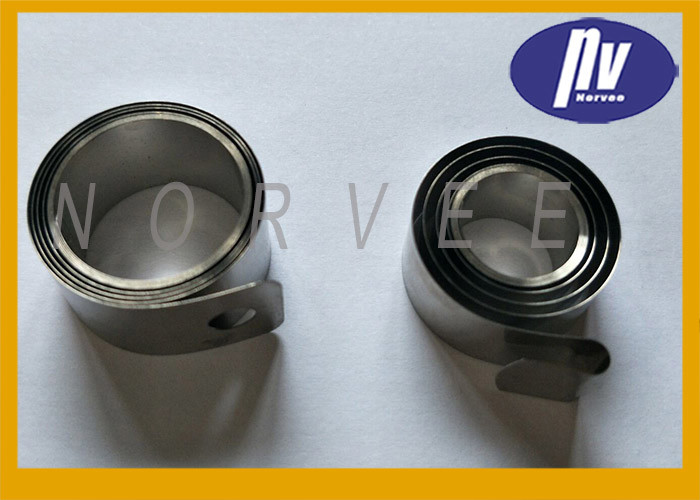

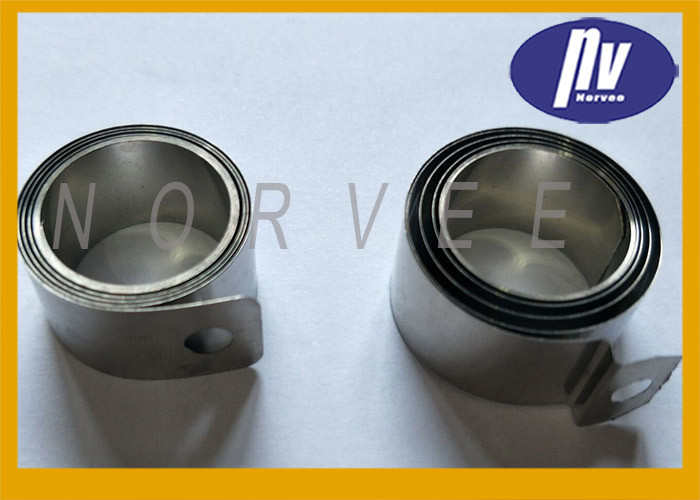

OEM Stainless Steel 301 Torsion Spiral Spring 2N For Vending Machine

Place of Origin CHINA
Brand Name NV
Certification ISO9001
Model Number NV-0225
Minimum Order Quantity 100PCS
Price negotiation
Packaging Details carton packing
Delivery Time 10 to 14 work days
Payment Terms L/C, , T/T, Western Union
Supply Ability 2 000 000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel 301 Force 2N
Name Industrial Torsion Spring Thickness 0.12MM
Length 300mm To 600mm Outside 30mm To 80mm
High Light

spiral power spring

,

steel tension springs

,

2N Torsion Spiral Spring

Leave a Message
Product Description

OEM stainless steel 301 tobacco pusher spring 2N for vending machine



Springs'Specifications:



Load Type:Torsion



Material:Stainless Steel, Stainless steel or carbon steel,Usage:dispenser,vending machine etc.

ProvideColours:Yellow,black,white as your request,Width:1MM-250MM,Thickness:0.08MM-8MM



Material Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5
Load type Constant and variable force
Thickness of material 0.08mm~ 1.8mm
Wire diameter 0.01mm~ 10mm
Width 1mm~ 250mm
Inside diameter As your request
Outside diameter 1 mm and above.
Length of springs Free length as you need
Surface treatment Zinc plated, nickel plated, black coating,also can be done as customers request
Application Furniture,industrial equipment,electronic devices,etc
Equipments Advanced CNC computer spring machines with high precision and efficiency
Technology Experienced engineers ,technicians and Skilled Workers
Certification ISO9001:2008
Advantage

High quality, competitive prices,automatic production equipment, , safe package and fast delivery







Power springs are identified by the many coils of strip material stored in a case, barrel, or band, and connected to a central arbor or shaft. When this shaft is rotated, the material starts to wind flat against it. This action creates an increasing torque for as many turns as it can be wound until there is no material left.

Constant force spring



The constant force spring consists of strip material, which has been shaped and pre-tensioned into a tightly wound roll. The spring is used in a linear movement and produces almost constant force throughout its deflection. Constant force springs can be fitted in a number of ways and extended partly or completely. There is practically no limit on extension speed and acceleration.

Pre-ressed or conventional power springs



Our capabilities of power springs range from 0.002 inch to 0.125 inch material thickness and from 0.030 inch to 3 inch material widths. Power springs can be made using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed power springs are spooled to a special free diameter and back wound into a housing or keeper, while conventional wound springs are manufactured and wound in the flat state. The advantages of pre-stressed springs are that it allows maximized torque from a specific material. Conventional wound power springs, however, offer increased cycle life.

Applications for power springs

· seatbelt retractors

· tape measures

· retractable dog leads

· electrical cord retractors

· hose reels

· wind-up toys

· pull start on small gas-powered engines

· tool balancers

· valves





OEM Stainless Steel 301 Torsion Spiral Spring 2N For Vending Machine 0

Pre-pressed or conventional power springs



Our capabilities of power springs range from 0.002 inch to 0.125 inch material thickness and from 0.030 inch to 3 inch material widths. Power springs can be made using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed power springs are spooled to a special free diameter and back wound into a housing or keeper, while conventional wound springs are manufactured and wound in the flat state. The advantages of pre-stressed springs are that it allows maximized torque from a specific material. Conventional wound power springs, however, offer increased cycle life.
