White Constant Force Spring , Stainless Steel Springs For Supermarket Pushers

Place of Origin CHINA
Brand Name NV
Certification ISO9001
Model Number NV-0014
Minimum Order Quantity 100PCS
Price negotiation
Packaging Details carton packing
Delivery Time 10 to 14 work days
Payment Terms L/C, , T/T, Western Union
Supply Ability 2 000 000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel 301 Colour White
Tolerance 0.01mm Thickness 0.08-1.8mm
Force 2n To 15n Length 100mm To 800mm
High Light

White Constant Force Spring

,

Supermarket Pushers Stainless Steel Springs

Leave a Message
Product Description

constant force stainless steel tobacco pushers springs for Supermarket Pushers



Specifications



NV or Customized

Model Number:

SS301

Style:

Spiral

Load Type:

Torsion

Material:

Stainless Steel 301

Usage:

Vendor, etc.

Samples:

Available

OEM Service:

Yes

Width:

1mm-250mm

Length:

Free length

Thickness of material:

0.08mm-2mm

Inside diameter:

According to your need

Outside diameter:

1mm and above





Material Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5
Load type Constant and variable force
Thickness of material 0.08mm~ 1.8mm
Wire diameter 0.01mm~ 10mm
Width 1mm~ 250mm
Inside diameter As your request
Outside diameter 1 mm and above.
Length of springs Free length as you need
Surface treatment Zinc plated, nickel plated, black coating,also can be done as customers request
Application Furniture,industrial equipment,electronic devices,etc
Equipments Advanced CNC computer spring machines with high precision and efficiency
Technology Experienced engineers ,technicians and Skilled Workers
Certification ISO9001:2008



Applications for power springs

· Tobacco shelf pusher

· seatbelt retractors

· tape measures

· retractable dog leads

· electrical cord retractors

· hose reels

· wind-up toys

· pull start on small gas-powered engines

· tool balancers

· valves

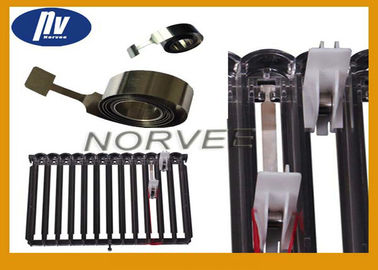

White Constant Force Spring , Stainless Steel Springs For Supermarket Pushers 0





Power Springs



Power springs are identified by the many coils of strip material stored in a case, barrel, or band, and connected to a central arbor or shaft. When this shaft is rotated, the material starts to wind flat against it. This action creates an increasing torque for as many turns as it can be wound until there is no material left.



Pre-pressed or conventional power springs



Our capabilities of power springs range from 0.002 inch to 0.125 inch material thickness and from 0.030 inch to 3 inch material widths. Power springs can be made using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed power springs are spooled to a special free diameter and back wound into a housing or keeper, while conventional wound springs are manufactured and wound in the flat state. The advantages of pre-stressed springs are that it allows maximized torque from a specific material. Conventional wound power springs, however, offer increased cycle life.





Motor spring



Motor spring for circular motion in max 10 and 20 coils, except pre-tension as specified below. The spring is usually positioned in a housing with the outer hook located around a pin or in a slot on the housing with the smallest internal diameter as specified below. It can also be placed in a larger housing, but with an associated decrease in force.
