300mm Flat Spiral Coil Compression Spring , Furniture Custom Torsion Springs

I'm Online Chat Now
Certification
China HANGZHOU NORVEE MACHINERY CO.,LTD certification
we cooperate with Norvee more than 10 years, we order the tobacco pusher springs and they can provide very good quality, in time delivery.

—— David Smith from Russia

Norvee can provide good quality gas spring, we order from them for many years and have very good cooperation.

—— William from Australia

we order the music material extension springs from Norvee since 2005, there is never quality problem and we order from them all the time till now.

—— Bill from USA

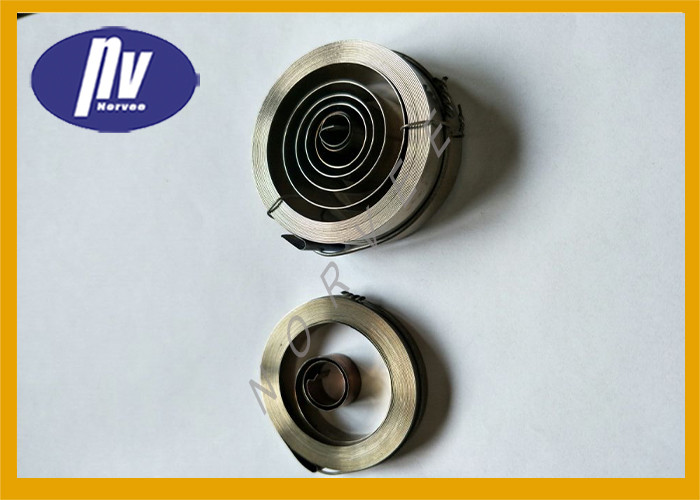

300mm Flat Spiral Coil Compression Spring , Furniture Custom Torsion Springs

300mm Flat Spiral Coil Compression Spring , Furniture Custom Torsion Springs
300mm Flat Spiral Coil Compression Spring , Furniture Custom Torsion Springs 300mm Flat Spiral Coil Compression Spring , Furniture Custom Torsion Springs

Large Image :  300mm Flat Spiral Coil Compression Spring , Furniture Custom Torsion Springs Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: NV
Certification: ISO9001
Model Number: NV-045

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: negotiation
Packaging Details: carton packing
Delivery Time: 10 to 14 worker days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1 000 000PCS per Month
Detailed Product Description
Material: Stainless Steel 302 Colour: White
Name: Stainless Steel Coil Springs Tolerance: +/-0.1mm
Length: 100mm To 900mm As Your Drawing Thickness: 0.01mm To 10mm
High Light:

tape measure spring

,

stainless steel coil springs

stainless steel 302 with 300mm flat spiral coil clock springs for the valves



Springs'Specifications:



Material Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5
Load type Constant and variable force
Thickness of material 0.08mm~ 1.8mm
Wire diameter 0.01mm~ 10mm
Width 1mm~ 250mm
Inside diameter As your request
Outside diameter 1 mm and above.
Length of springs Free length as you need
Surface treatment Zinc plated, nickel plated, black coating,also can be done as customers request
Application Furniture,industrial equipment,electronic devices,etc
Equipments Advanced CNC computer spring machines with high precision and efficiency
Technology Experienced engineers ,technicians and Skilled Workers
Certification ISO9001:2008
Advantage High quality, competitive prices,automatic production equipment, , safe package and fast delivery







Applications for power springs



  • seatbelt retractors
  • tape measures
  • retractable dog leads
  • electrical cord retractors
  • hose reels
  • wind-up toys
  • pull start on small gas-powered engines
  • tool balancers
  • valves



300mm Flat Spiral Coil Compression Spring , Furniture Custom Torsion Springs 0







Power springs are identified by the many coils of strip material stored in a case, barrel, or band, and connected to a central arbor or shaft. When this shaft is rotated, the material starts to wind flat against it. This action creates an increasing torque for as many turns as it can be wound until there is no material left.



Pre-pressed or conventional power springs



Our capabilities of power springs range from 0.002 inch to 0.125 inch material thickness and from 0.030 inch to 3 inch material widths. Power springs can be made using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed power springs are spooled to a special free diameter and back wound into a housing or keeper, while conventional wound springs are manufactured and wound in the flat state. The advantages of pre-stressed springs are that it allows maximized torque from a specific material. Conventional wound power springs, however, offer increased cycle life.



Clock spring





The clock spring (also referred to as a flat torsion spring) is designed to produce a torsional force (circular movement). In contrast to the tightly coiled motor spring on the previous page, the clock spring has open coils that, when mounted correctly, reduces fricton to zero. However, torque capacity is reduced as a result. The standard range is made from rounded edge stainless steel, which affords a better fatigue life.





Constant force spring



The constant force spring consists of strip material, which has been shaped and pre-tensioned into a tightly wound roll. The spring is used in a linear movement and produces almost constant force throughout its deflection. Constant force springs can be fitted in a number of ways and extended partly or completely. There is practically no limit on extension speed and acceleration.



Our service:



1. Can design for you

2. Advanced equipments of Springs

3. High quality with competitve price

4. Safe package

5. Fast delivery
