Industrial Equipment Helical Compression Spring Constant Force / Variable Force

China Industrial Equipment Helical Compression Spring Constant Force / Variable Force supplier
Industrial Equipment Helical Compression Spring Constant Force / Variable Force supplier Industrial Equipment Helical Compression Spring Constant Force / Variable Force supplier

Large Image :  Industrial Equipment Helical Compression Spring Constant Force / Variable Force

Product Details:

Place of Origin: CHINA
Brand Name: NV
Certification: ISO9001
Model Number: NV-0013

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS-10000PCS
Price: negotiation
Packaging Details: carton packing
Delivery Time: 10 to 14 work days
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 2 000 000PCS/month
Contact Now
Detailed Product Description
Material: Stainless Steel 301 Name: Torsion Spiral Spring
Tolerance: 0.01mm Thickness: 0.08-1.8mm
Length: 200mm To 600mm Width: 8mm To 20mm

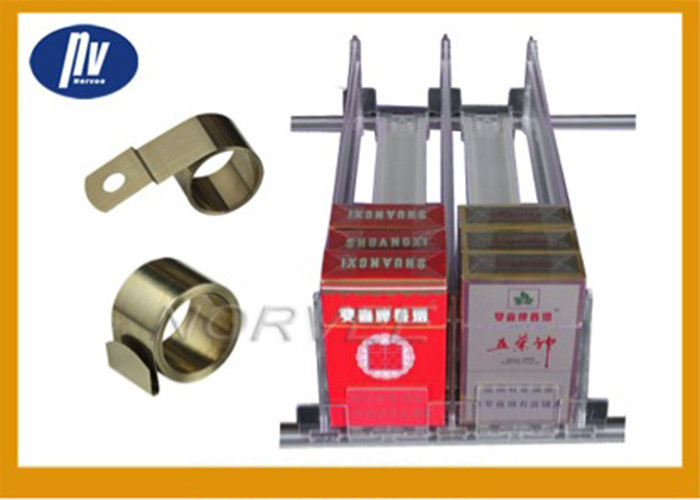

constant force stainless steel cigarette pushers springs for dispenser



Specifications



Style:Spiral Load Type:Torsion,Material:Stainless Steel, Stainless steel or carbon steel

Usage:dispenser,vending machine etc. OEM service:Yes,Samples:Provide

Colours:Yellow,black,white as your request.Width:1MM-250MM

Thickness:0.08MM-8MM. Payment term:TT,L/C,paypal,Western union





Material Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5
Load type Constant and variable force
Thickness of material 0.08mm~ 1.8mm
Wire diameter 0.01mm~ 10mm
Width 1mm~ 250mm
Inside diameter As your request
Outside diameter 1 mm and above.
Length Free length as you need
Finish Zinc plated, nickel plated, black coating,also can be done as customers request
Application Furniture,industrial equipment,electronic devices,etc
Equipments Advanced CNC computer spring machines with high precision and efficiency
Technology Experienced engineers ,technicians and Skilled Workers
Certification ISO9001:2008
Advantage High quality, competitive prices,automatic production equipment, , safe package and fast delivery


Applications for power springs



· Tobacco shelf pusher

· seatbelt retractors

· tape measures

· retractable dog leads

· electrical cord retractors

· hose reels

· wind-up toys

· pull start on small gas-powered engines

· tool balancers

· valves



 Industrial Equipment Helical Compression Spring Constant Force / Variable Force





Industrial Equipment Helical Compression Spring Constant Force / Variable Force

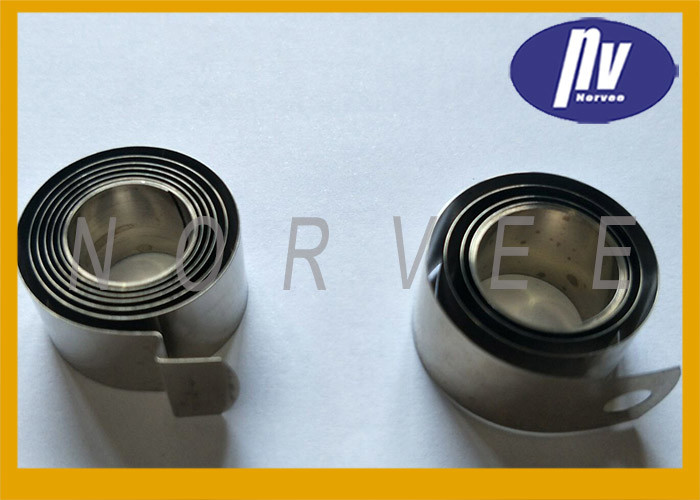

Power Springs



Power springs are identified by the many coils of strip material stored in a case, barrel, or band, and connected to a central arbor or shaft. When this shaft is rotated, the material starts to wind flat against it. This action creates an increasing torque for as many turns as it can be wound until there is no material left.



Pre-pressed or conventional power springs



Our capabilities of power springs range from 0.002 inch to 0.125 inch material thickness and from 0.030 inch to 3 inch material widths. Power springs can be made using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed power springs are spooled to a special free diameter and back wound into a housing or keeper, while conventional wound springs are manufactured and wound in the flat state. The advantages of pre-stressed springs are that it allows maximized torque from a specific material. Conventional wound power springs, however, offer increased cycle life.





Our service:



1. Can design for you

2. Advanced equipments of Springs

3. High quality with competitve price

4. Safe package

5. Fast delivery





Why Choose us?



1. We can provide reasonable price ,fast shipping,timely delivery ,continue developing advancing and innovation.



2. The customers can get high quality products , preferential price , and good service from our company.



3. Our company sincerely welcomes customers from both home and abroad to contact with us.
