|Material:||62SI2MNA||Name:||Heavy Duty Tension Springs|
|Length:||100mm To 900mm As Your Drawing||Thickness:||0.01mm To 10mm|
tension coil springs,
stainless steel coil springs

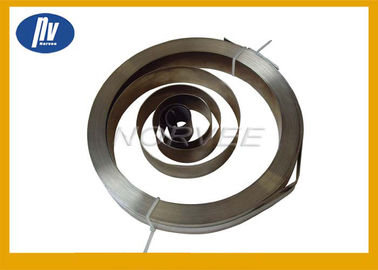

carbon steel flat spiral coil power springs for the vacuum cleaner with ISO9001
1. Can design for you
2. Advanced equipments of Springs
3. High quality with competitve price
4. Safe package
5. Fast delivery
1. Width of springs:1mm~250mm
2. Length of springs: Any length as you need
3. Thickness of material :0.08mm~8mm
4. Size:Custom made,as your required
5. Material:Stainless Steel as SUS301,SUS304,SUS316,Carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5
|Material||Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5|
|Load type||Constant and variable force|
|Thickness of material||0.08mm~ 1.8mm|
|Wire diameter||0.01mm~ 10mm|
|Inside diameter||As your request|
|Outside diameter||1 mm and above.|
|Length of springs||Free length as you need|
|Surface treatment||Zinc plated, nickel plated, black coating,also can be done as customers request|
|Application||Furniture,industrial equipment,electronic devices,etc|
|Equipments||Advanced CNC computer spring machines with high precision and efficiency|
|Technology||Experienced engineers ,technicians and Skilled Workers|
|Advantage||High quality, competitive prices,automatic production equipment, , safe package and fast delivery|
Torsion springs can either have a left-hand or right-hand helix. They are made to give a force and torque when one leg is turned relative the other.
Our helical torsion springs are made in dimensions from 0.03- 26 millimeter and we select wire diameter, spring body diameter, length and pitch to suit your requirements.
For closed coiled helical torsion springs there will be a friction between the coils giving a hysteresis in the torque-angle performance.
There are generally two common types, single and double coil torsion springs. Normally is the coil controlled inside with a mandrel but also an outer control with a cylindrical housing is possible. With fixed assembled legs the spring type can work without a coil body control. Tangential legs give the lowest stresses but also radial and axial legs of different types are possible. In many cases the strain in the legs must be considered in the design
Power springs are identified by the many coils of strip material stored in a case, barrel, or band, and connected to a central arbor or shaft. When this shaft is rotated, the material starts to wind flat against it. This action creates an increasing torque for as many turns as it can be wound until there is no material left.
Pre-pressed or conventional power springs
Our capabilities of power springs range from 0.002 inch to 0.125 inch material thickness and from 0.030 inch to 3 inch material widths. Power springs can be made using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed power springs are spooled to a special free diameter and back wound into a housing or keeper, while conventional wound springs are manufactured and wound in the flat state. The advantages of pre-stressed springs are that it allows maximized torque from a specific material. Conventional wound power springs, however, offer increased cycle life.
