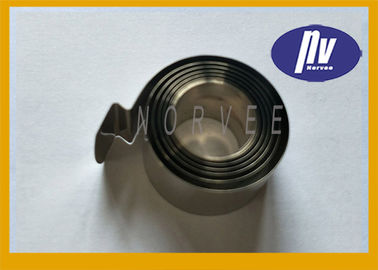

0.12MM Thickness Constant Pressure Spring , Vending Machine Suspension Coil Spring
| Place of Origin | CHINA |
|---|---|
| Brand Name | NV |
| Certification | ISO9001 |
| Model Number | NV-0018 |
| Minimum Order Quantity | 100PCS |
| Price | negotiation |
| Packaging Details | carton packing |
| Delivery Time | 10 to 14 work days |
| Payment Terms | L/C, , T/T, Western Union |
| Supply Ability | 2 000 000PCS/month |
Product Details
| Material | Stainless Steel | Colour | White |
|---|---|---|---|
| Tolerance | 0.01mm | Thickness | 0.12MM |
| Length | 100mm To 900mm | Outside | 200MM TO 800MM |
| High Light | constant force spring,constant torque spring |
||
Product Description
stainless steel 301 Spiral spring tobacco shelf pushers springs for vending machine
Springs'Specifications:
Style:Spiral Load Type:Torsion,Material:Stainless Steel, Stainless steel or carbon steel
Usage:dispenser,vending machine etc. OEM service:Yes,Samples:Provide
Colours:Yellow,black,white as your request.Width:1MM-250MM
Thickness:0.08MM-8MM. Payment term:TT,L/C,paypal,Western union
Our service:
1. Can design for you
2. Advanced equipments of Springs
3. High quality with competitve price
4. Safe package
5. Fast delivery
| Material | Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5 |
| Load type | Constant and variable force |
| Thickness of material | 0.08mm~ 1.8mm |
| Wire diameter | 0.01mm~ 10mm |
| Width | 1mm~ 250mm |
| Inside diameter | As your request |
| Outside diameter | 1 mm and above. |
| Length of springs | Free length as you need |
| Surface treatment | Zinc plated, nickel plated, black coating,also can be done as customers request |
| Application | Furniture,industrial equipment,electronic devices,etc |
| Equipments | Advanced CNC computer spring machines with high precision and efficiency |
| Technology | Experienced engineers ,technicians and Skilled Workers |
| Certification | ISO9001:2008 |
| Advantage | High quality, competitive prices,automatic production equipment, , safe package and fast delivery |
Power Springs
Power springs are identified by the many coils of strip material stored in a case, barrel, or band, and connected to a central arbor or shaft. When this shaft is rotated, the material starts to wind flat against it. This action creates an increasing torque for as many turns as it can be wound until there is no material left.
Pre-pressed or conventional power springs
Our capabilities of power springs range from 0.002 inch to 0.125 inch material thickness and from 0.030 inch to 3 inch material widths. Power springs can be made using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed power springs are spooled to a special free diameter and back wound into a housing or keeper, while conventional wound springs are manufactured and wound in the flat state. The advantages of pre-stressed springs are that it allows maximized torque from a specific material. Conventional wound power springs, however, offer increased cycle life.
Constant force spring
The constant force spring consists of strip material, which has been shaped and pre-tensioned into a tightly wound roll. The spring is used in a linear movement and produces almost constant force throughout its deflection. Constant force springs can be fitted in a number of ways and extended partly or completely. There is practically no limit on extension speed and acceleration.
Why Choose us?
1. We can provide reasonable price ,fast shipping,timely delivery ,continue developing advancing and innovation.
2. The customers can get high quality products , preferential price , and good service from our company.
3. Our company sincerely welcomes customers from both home and abroad to contact with us.
