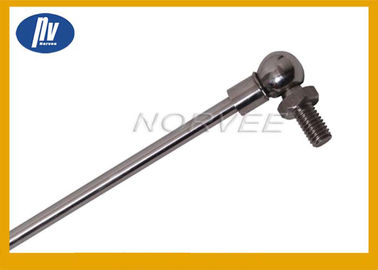

316 Stainless Steel Stainless Steel Gas Struts Gas Lift With Metal Eye End Fitting

316 Stainless Steel Stainless Steel Gas Struts Gas Lift With Metal Eye End Fitting
316 Stainless Steel Stainless Steel Gas Struts Gas Lift With Metal Eye End Fitting 316 Stainless Steel Stainless Steel Gas Struts Gas Lift With Metal Eye End Fitting

Large Image :  316 Stainless Steel Stainless Steel Gas Struts Gas Lift With Metal Eye End Fitting Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: NV
Certification: ISO9001
Model Number: NV-1001

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS-100PCS
Price: negotiation
Packaging Details: carton packing
Delivery Time: 15 to 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 000PCS/Month
Detailed Product Description
Material: Stainless Steel 316 End: Stainless Steel Ball End
Colour: White Length: As Your Request
Name: Heavy Duty Gas Struts Force: 100N To 800N
High Light:

gas assist struts

,

furniture gas struts

OEM stainless steel 316 gas springs gas struts gas lift for auto

High quality car gas springs with metal eye end fitting

OEM high quality car gas springs/struts with metal eye end fitting



Product Advantage


OEM service Provide
Material Metal,stainless steel,steel
Surface treadment Chrome Plated,Black Coating,Zinc Plated,Nickel Plated
Colour Black,silver,white,yellow and so on as you need

End fittings
(Accessories)

Metal or plastic ball socket ed end fitting,Chrome plated end fitting, Metal eye end fitting, Clevis end fitting,Threaded end fitting Stainless steel end fitting……
Experience More than 10 years of produce and exported experience
Supply Ability 100,000 pieces/month
Certificate ISO9001:2008
Package Each one with a plastic bag packaged,and put in carton,then pallet or send into container.Also can pack as client’s request.
Application Automobile,industiral,furniture,cabinet,modern automotic machinery,heavy machinery,agriculture machinery




Product Specification:
High quality car gas springs with metal eye end fitting

Type Diameter of Rod (d) Diameter of Tube (D) Stroke (S) Extension Length (L) Force
YQ6/15 6mm 15mm 88mm-150mm 245mm-385mm 50N-400N
YQ8/18 8mm 18mm 84mm-145mm 245mm-375mm 50N-700N
YQ10/22 10mm 22mm 150mm-225mm 390mm-510mm 100N-1500N
YQ14/28 14mm 28mm 58mm-350mm 250mm-830mm 100N-2500N



Applications:



Suitable for up-turning wooden door and aluminum-frame door,Weight-lifting is 40N-200N Different specs are suitable for doors of different weights

Can be purchased or custom-buit for proper strength based on weght of door panel.

Gas Spring for Auto,Furniture,Machine

1. Spec.:

Extended long: 100~2000mm

Stroke: 10~500mm

Force: 20~3000N



2. Technical parameter for choice



Stroke length(mm) Extented length(studs) (mm) Rod diameter (mm) Body diameter (mm) Force range (N)
20-250 2×str+70mm 6 15 20N-400N
20-300 2×str+85mm 8 18 50N-800N
20-400 2×str+85mm 10 22 100N-1500N
20-400 2×str+85mm 12 22 100N-2000N
20-500 2×str+85mm 12 26 100N-3000N



3. Usage:

Cabinet, furniture, tool box, machinery, automobile etc.



4. Features:

1) Nitrogen filled inside

2) Material: Seamless steel

3) Color: silver, black, or other options

4) No noise, smooth operation

5) Easy installation

6) Competitive price, high-quality, fast delivery, good service

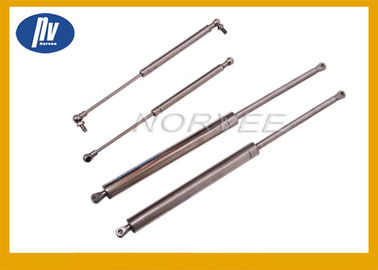

316 Stainless Steel Stainless Steel Gas Struts Gas Lift With Metal Eye End Fitting 1316 Stainless Steel Stainless Steel Gas Struts Gas Lift With Metal Eye End Fitting 2



Our competence in gas springs

We have extensive experience in making gas springs and consistently prioritize technological developments in the field. Our wide product range, high quality and service approach establish our competitive advantage.
Our gas spring range is unique in its scale and known for its diversity. This allows our gas springs to be used in nearly every industry sector.
Our designers are experienced problem solvers, and we have succeeded in reaching our quality level through deep technical competence in combination with advanced gas spring production technology. We also consistently improve our gas springs through close cooperation with you.




Our Services


1. Samples can be offer.
2. High quality can be guaranteed.
3. Reasonable price, better service.
