|Force:||2N To 20N||Name:||Constant Tension Spring|
|Length:||100mm To 900mm||Width:||14mm|
constant torque spring,
variable force spring

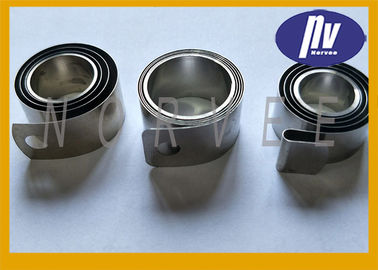

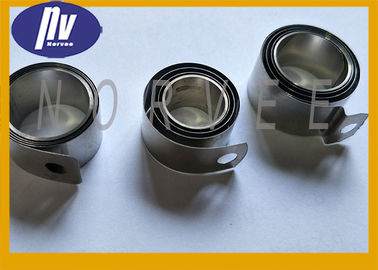

Stainless steel 301 spiral spring cigarette pusher springs for vending machine
|Material||Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5|
|Load type||Constant and variable force|
|Thickness of material||0.08mm~ 1.8mm|
|Wire diameter||0.01mm~ 10mm|
|Inside diameter||As your request|
|Outside diameter||1 mm and above.|
|Length of springs||Free length as you need|
|Surface treatment||Zinc plated, nickel plated, black coating,also can be done as customers request|
|Application||Furniture,industrial equipment,electronic devices,etc|
|Equipments||Advanced CNC computer spring machines with high precision and efficiency|
|Technology||Experienced engineers ,technicians and Skilled Workers|
|Advantage||High quality, competitive prices,automatic production equipment, , safe package and fast delivery|
Why Choose us?
1. We can provide reasonable price ,fast shipping,timely delivery ,continue developing advancing and innovation.
2. The customers can get high quality products , preferential price , and good service from our company.
3. Our company sincerely welcomes customers from both home and abroad to contact with us.
· Tobacco shelf pusher
· seatbelt retractors
· tape measures
· retractable dog leads
· electrical cord retractors
· hose reels
· wind-up toys
· pull start on small gas-powered engines
· tool balancers
Motor spring for circular motion in max 10 and 20 coils, except pre-tension as specified below. The spring is usually positioned in a housing with the outer hook located around a pin or in a slot on the housing with the smallest internal diameter as specified below. It can also be placed in a larger housing, but with an associated decrease in force.
The clock spring (also referred to as a flat torsion spring) is designed to produce a torsional force (circular movement). In contrast to the tightly coiled motor spring on the previous page, the clock spring has open coils that, when mounted correctly, reduces fricton to zero. However, torque capacity is reduced as a result. The standard range is made from rounded edge stainless steel, which affords a better fatigue life.
The constant force spring consists of strip material, which has been shaped and pre-tensioned into a tightly wound roll. The spring is used in a linear movement and produces almost constant force throughout its deflection. Constant force springs can be fitted in a number of ways and extended partly or completely. There is practically no limit on extension speed and acceleration.
